4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes

  • 4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes
  • 4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes
  • 4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes
Place of Origin CHINA
Brand Name OEM/ODM
Certification ISO
Model Number ASTM 1020 1045 Q235ETC
Minimum Order Quantity 3 tons
Price negotiable based on the quantity
Packaging Details standard seaport packing or as customers' requirement
Delivery Time within 15 days after received the advance
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM GB JIS DIN Grade 10#, 20#, 45#, A213, A192, A178-C, A209, A200, A199, A214,
Shape Square OD 30*30mm-1000*1000mm
Surface Galvanized, Oiled, Black Painted Application Construction Structure
Tolerance ±5% Length 6-12m
High Light

1inch steel square tube

,

carbon steel welded tubes

,

4x4 steel square tube
Leave a Message
Product Description

Black Carbon Steel Square Pipe Welded Steel Pipe



carbon tube is used in a variety of high-demand industries, especially for structural and mechanical support. We offer high-quality carbon steel tubing in square, round and rectangular shapes in a wide assortment of widths, wall thicknesses and outside diameter measurements.

In-house processing capabilities for carbon tube include chamfering, deburring and laser cutting, with just-in-time delivery and available stocking programs for the custom sizes you need. Our base stock includes the following grades, types and thicknesses:

Carbon Steel Tube Shape Carbon Steel Tube Grades/Types Carbon Steel Tube Sizes
Carbon Rectangular Tube Grades: 1008/1010, A500 Gr B/C, HSLA Gr 70
Types: CREW, HREW		 Widths 0.5" thru 20"
Wall Thickness: up to 0.5"
Carbon Round Tube Grades: 1010, 1020, 1026, 1008/1010, 1010/1015, 1010/1020, A500 Gr B/C, J525,
Types: Annealed, CDS, CREW, DOM, HFS, HREW, Hydraulic Tubing, A513, A519		 OD: 0.25" thru 12"
Wall Thickness: 0.035" thru 2"
Carbon Square Tube Grades: 1010, 1008/1010, A500 Gr B/C
Types: CREW, HREW		 Widths 0.375" thru 10"
Wall Thickness: 0.035" thru 0.5"
SAE 1020
Chemical composition: C=0.20%, Mn=0.45%, P=0.04% max, S=0.05% max
Property Value in metric unit Value in US unit
Density 7.872 *10³ kg/m³ 491.4 lb/ft³
Modulus of elasticity 200 GPa 29000 ksi
Thermal expansion (20 ºC) 11.9*10-6 ºCˉ¹ 6.61*10-6 in/(in* ºF)
Specific heat capacity 486 J/(kg*K) 0.116 BTU/(lb*ºF)
Thermal conductivity 51.9 W/(m*K) 360 BTU*in/(hr*ft²*ºF)
Electric resistivity 1.59*10-7 Ohm*m 1.59*10-5 Ohm*cm
Tensile strength (hot rolled) 380 MPa 55100 psi
Yield strength (hot rolled) 165 MPa 29700 psi
Elongation (hot rolled) 25 % 25 %
Hardness (hot rolled) 66 RB 66 RB
Tensile strength (cold drawn) 420 MPa 60900 psi
Yield strength (cold drawn) 205 MPa 50800 psi
Elongation (cold drawn) 15 % 15 %
Hardness (cold drawn) 73 RB 73 RB



Specifications of stainless steel decorative pipe (mirror)
Standard 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.5
Actual 0.32 0.40 0.50 0.60 0.70 0.90 1.10 1.40 1.90 2.40 2.90 3.40 3.90
Φ 12.3 0.57 0.71 0.88 1.05 1.21 1.53 1.84
Φ 12.7 0.59 0.74 0.91 1.09 1.26 1.91 1.91
Φ 15.3 0.72 0.89 1.11 1.32 1.53 2.33 2.33
Φ 16.0 0.75 0.93 1.16 1.38 1.60 2.45 2.45 3.06
Φ 17.2 0.81 1.00 1.25 1.49 1.73 2.19 2.65 3.31
Φ 18 0.85 1.05 1.31 1.56 1.81 2.30 2.78 3.47
Φ 19 0.89 1.11 1.38 1.65 1.91 2.43 2.94 3.68 4.86
Φ 20.2 0.95 1.18 1.47 1.76 2.04 2.60 3.14 3.93 5.20
Φ 22 1.04 1.29 1.61 1.92 2.23 2.84 3.43 4.31 5.71
Φ 25 1.18 1.47 1.83 2.19 2.54 3.24 3.93 4.94 6.56
Φ 28 1.32 1.65 2.06 2.46 2.86 3.65 4.42 5.57 7.41
Φ 29.2 1.38 1.72 2.14 2.57 2.98 3.81 4.62 5.82 7.75
Φ 31.8 1.51 1.88 2.34 2.80 3.25 4.16 5.04 6.36 8.49 10.55 12.53
Φ 35.8 1.70 2.12 2.64 3.16 3.67 4.69 5.70 7.20 9.63 11.98 14.26
Φ 38 1.80 2.25 2.80 3.35 3.90 4.99 6.07 7.66 10.25 12.77 15.22
Φ 42   2.49 3.10 3.71 4.32 5.52 6.72 8.50 11.39 14.21 16.95
Φ 48   2.85 3.55 4.25 4.95 6.34 7.71 9.75 13.09 16.36 19.55
Φ 50.8   3.01 3.76 4.50 5.24 6.71 8.17 10.34 13.89 17.36 20.76 24.09
Φ 60   3.56 4.45 5.33 6.20 7.95 9.68 12.26 16.50 20.66 24.75 28.77
Φ 63     4.67 5.60 6.52 8.35 10.18 12.89 17.35 21.74 26.05 30.29
Φ 70       6.22 7.25 9.29 11.32 14.36 19.34 24.25 29.09 33.85
Φ 76       6.76 7.88 10.10 12.31 15.61 21.04 26.40 31.69 36.90 42.03
Φ 80       7.12 8.30 10.64 12.97 16.45 22.18 27.84 33.42 38.93 44.36
Φ 85       7.57 8.82 11.31 13.79 17.49 23.60 29.63 35.59 41.47 47.28
Φ 88.9       7.92 9.23 11.84 14.43 18.31 24.71 31.03 37.28 43.45 49.55
Φ 101.6       9.06 10.56 13.55 16.52 20.97 28.32 35.59 42.78 49.91 56.96
Φ 108         11.23 14.41 17.58 22.31 30.13 37.88 45.56 53.16 60.69
Φ 114         11.86 15.21 18.56 23.56 31.84 40.04 48.16 56.21 64.18
Φ 127           16.96 20.70 26.28 35.53 44.70 53.80 62.82 71.76
Φ 133           17.77 21.69 27.54 37.23 46.85 56.40 65.87 75.26
Φ 141           18.85 23.00 29.21 39.51 49.72 59.86 69.93 79.92
Φ 159             25.96 32.98 44.62 56.18 67.67 79.08 90.42
Φ 168               34.86 47.17 59.41 71.57 83.65 95.66
Φ 219               45.54 61.66 77.70 93.68 109.57 125.39
Standard 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.5
Actual 0.32 0.40 0.50 0.60 0.70 0.90 1.10 1.40 1.90 2.40 2.90 3.40 3.90

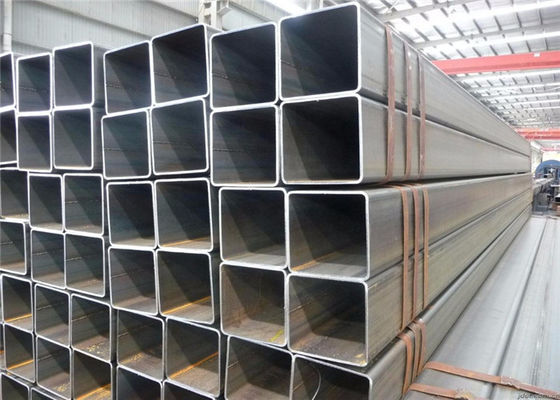

Product show

4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes 0


Packing and deliverary
4 X 4 1 Inch 1.5" Carbon Steel Square Tube With Holes Cs Welded Pipes 1

If you have any question, please feel free to contact us any time.
