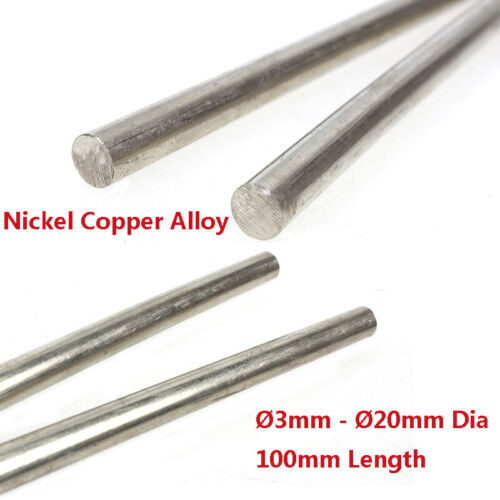

BFe30-1-1 C70600 C71500 Copper Nickel Alloy Rods Steel Plate Forgings
| Place of Origin | CHINA |
|---|---|
| Brand Name | OEM/ODM |
| Certification | ISO, SGS, CE |
| Model Number | BFe30-1-1 C70600 C71500 |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Copper Nickel Alloy | Standard | JIS, AISI, ASTM, GB |
|---|---|---|---|
| Technic | Mill Finish, Polished, Anodizing, Brushing, Sand Blasting, Powder Coating,etc | Finish | Bright Polish |
| Length | 6000-9000mm,5800mm | Diameter | 10-200mm |
| Application | Chemical Processing, Pollution Control, Nuclear Reactors | Shape | Round, Angle, Hex. |
| Elongation (≥ %) | 30 | Ni (Min) | 42 |
Product Description
BFe30-1-1 C70600 C71500 Copper Nickel Alloy Rods Steel Plate Forgings
Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems. Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.
Features:
* Resistant to seawater and steam at high temperatures
* Excellent resistance to rapidly flowing brackish water or seawater
* Excellent resistance to stress corrosion cracking in most freshwaters
* Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
* Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids
* Excellent resistance to neutral and alkaline salt
* Resistance to chloride induced stress corrosion cracking
* Good mechanical properties from sub-zero temperatures up to 1020° F
* High resistance to alkalis
Applications:
* Valves, pumps, shafts, fittings, and fasteners
* Industrial heat exchangers
* Chlorinated solvents
* Crude oil distillation towers
* Industrial heat exchangers
* Chlorinated solvents
* Crude oil distillation towers
* Marine engineering
* Chemical and hydrocarbon processing equipment
* Gasoline and freshwater tanks
* Crude petroleum stills
* De-aerating heaters
* Boiler feed water heaters and other heat exchangers
* Chemical and hydrocarbon processing equipment
* Gasoline and freshwater tanks
* Crude petroleum stills
* De-aerating heaters
* Boiler feed water heaters and other heat exchangers
Specification
|
Chemical Composition
|
|||||||
|
Grade
|
Ni%
|
Cu%
|
Fe%
|
Mn%
|
C%
|
Si%
|
S%
|
|
Monel 400
|
Min 63
|
28-34
|
Max 2.5
|
Max 2.0
|
Max 0.30
|
Max 0.50
|
Max 0.024
|
|
Monel 400 International Brand
|
||||
|
|
USA
|
GE
|
UK
|
FR
|
|
|
UNS
|
SEW VDIUV
|
BS
|
AFNOR
|
|
Monel 400
|
N04400
|
W.Nr.2.4360 NiCu30Fe
|
NA 12
|
Nu 30
|
|
Physical Properties
|
||
|
Grade
|
Density
|
Melting Point
|
|
Monel 400
|
8.83 g/cm3
|
1300℃-1390℃
|
|
Mechanical Properties
|
||||
|
Alloy
|
Tensile Strength
(Rm N/mm2)
|
Yield strength
(RP0.2N/mm2)
|
Elongation(A5%)
|
HB
|
|
Monel 400
|
480
|
170
|
35
|
≥331
|
|
Production Standard
|
|||||
|
|
Bar
|
Forging
|
Pipe
|
Sheet/Strip
|
Welding Wire
|
|
Standard
|
ASTM B164
|
ASTM B564
|
ASTM B165
|
ASTM B127
|
ERNiCu-7
|
Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.
Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
