Abrex 600 AR600 Steel Plate 65HRC High Chrome Coated
Place of Origin | CHINA |
---|---|
Brand Name | OEM/ODM |
Certification | ISO |
Model Number | AR600 |
Minimum Order Quantity | 1 ton |
Price | negotiable |
Packaging Details | Standard exporting seaworthy packing or as customer demands |
Delivery Time | 5-8 work days and depend on the quantity |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 800 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Grade | AR600 | Thickness | 10-100mm |
---|---|---|---|
Length | 3000~4000mm | Width | 1400~2400mm |
Surface Treatment | Coated | Tempreture | 0~600℃ |
Surface Finish | High Carbon High Chrome | Hardness | 58~65HRC |
High Light | Abrex 600 AR600 Steel Plate 65HRC,ar600 plates,AR600 Abrasion Resistant Steel Plate |
Product Description
Ar600 Wear Resistant Steel Plates
Product Description
Product Name
|
Ar600 Wear Resistant Steel Plates | ||
Annual Output
|
90000 m2
|
||
Base Metal
|
Q235/Q345 or other medium or low carbon steel or stainless steel
|
||
Surfacing Overlay
|
High chromium high carbide
|
||
Chemical Composition
|
C(%): 3.0-5.0 ,Cr(%): 25-40
|
||
Metallographic Structure
|
The carbide (Cr7C3) volume fraction on the microstructure is above 50%
|
||
Hardness
|
HRC58-65
|
||
Wear Resistance
|
Our test shows that the wear resistance of plate is 20 times higher than low carbon steel and 8 times than heat treated steel
|
||
Impact Resistance
|
withstand medium impact
|
||
Flatness Tolerance
|
Flatness tolerance is ±3mm/m
|
||
Thickness Tolerance
|
Uniform overlay thickness, tolerance within 0-0.5mm
|
||
Main Thickness
Base metal + overlay
|
3+3, 4+4, 5+5
6+4, 6+5, 6+6, 6+8 8+4, 8+5, 8+6, 8+7, 8+8 10+4, 10+5, 10+6, 10+7, 10+8, 10+9, 10+10, 10+20 12+4, 12+5, 12+6, 12+7, 12+8, 12+10, 12+11, 12+12, 12+18, 12+20 14+6, 14+8, 14+10 16+6, 16+8, 16+10 18+6, 18+8, 18+10 20+5, 20+6, 20+8, 20+10, 30+10, 40+10, 20+20, 20+25 Customized thickness is acceptable |
||
Size
|
Width:Max 2400mm
Length:Max 4000mm Customized size is acceptable |
||
Package
|
Steel Pallet or Fumigation wooden case
|
||
Delivery Time
|
1-10 days after order confirmed
|
||
Port Of Loading
|
ShangHai Port
|
||
Payment Term
|
EXW, FOB,CFR, CIF
|
||
Other Wear Resistant Plate
|
1. Impact Resistant Wear Plates
---Independent R&D, with high wear and high impact resistance 2. Heat Resistant Wear Plates ---Independent R&D, with heat resistance maximum up to 900℃ 3. No Crack Wear Plates ---Hardness HRC: 50-55, mainly used in housing liner of steel mill, domestic unique product 4. Special Chemical Elements Wear Plates ---Customized, Chemical elements: Mo, Nb, Ni, W, V, etc. |
Packaging
|
Standard seaworthy export packing, other types of packing can be customized as every requirement.
|
Shipping packaging
|
Bundled with firm steel straps, easy for loading and unloading.
|
Shipping time
|
5-7 work days after delivery
|
Shipping way
|
BY SEA
|
Shipping port
|
ShangHai
|
The appearance is smooth and flat
Because this product use the special craft,the high grade equipment and the precision formulation,the smooth surface of finished product is a remarkable characteristic compared to rhe similar products.
Excellent processability
Cutting, welding and bending can be done at will, which improves the utilization rate of wear-resisting steel plate.
Because substrate is made of ordinary steel or stainless steel, it is suitable for special working parts such as high temperature and high impact requirements, and can be better welded with other parts.
Special welding materials are used to weld the alloy layer. The welding seam has the same wear resistance as the alloy.
Because substrate is made of ordinary steel or stainless steel, it is suitable for special working parts such as high temperature and high impact requirements, and can be better welded with other parts.
Special welding materials are used to weld the alloy layer. The welding seam has the same wear resistance as the alloy.
High cost performance
This product has a long wear-resisting life, delays the amount of time and frequency of customers' downtime for maintenance, effectively improves production efficiency and saves maintenance costs
Wide range of custom-made applications
This product can scientifically adjust the alloy formula and the thickness of alloy layer according to the requirements of customers, so as to meet the special requirements of customers under different working conditions, such as high temperature resistance, acid and alkali corrosion resistance, impact resistance

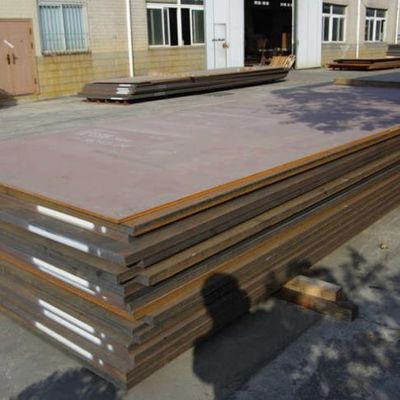

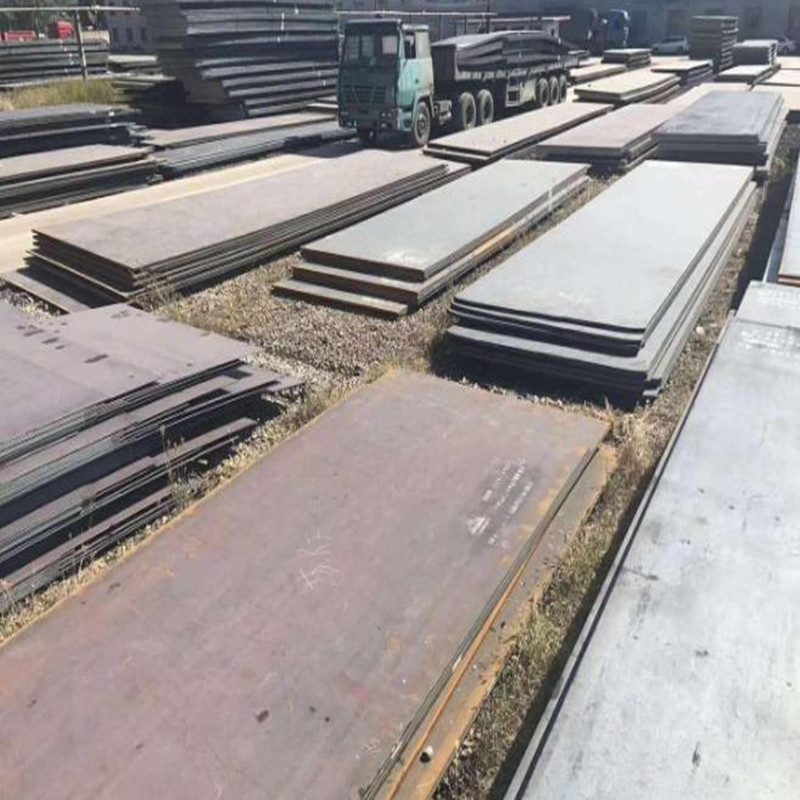

Product show
Packing and delivery
If you have any question, please feel free to contact us any time.
