10-30mm Thickness ASTM-A36 And Q235 Material High Carbon Steel Sheet
| Place of Origin | China |
|---|---|
| Brand Name | OEM/ODM |
| Certification | ISO BV |
| Model Number | ASME SA516 Grade 70 |
| Minimum Order Quantity | 1 tons |
| Price | negotiation |
| Packaging Details | standard packing or as the requirement |
| Delivery Time | ship withon 10 days after receive the advance |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | As Requirement | Surface | Oil,black,galvanized |
|---|---|---|---|
| Packing | Standard Seaport Packing | Width | 600-2000mm |
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Material | ASTM A36 |
| Thickness | 0.3-200mm | Technique | Hot Rolled |
| High Light | 10mm carbon steel plate,20mm carbon steel plate,astm a36 plate |
||
Product Description

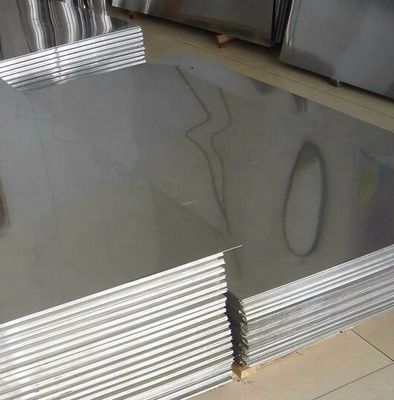

ASTM A36 Carbon Steel Plate Hot Rolled Mild Steel Plate
Carbon structural steel plate refers to carbon steel with less than 0.8% carbon, which contains less sulfur, phosphorus and nonmetal inclusions than carbon structural steel, with better mechanical properties.
|
Steel grade type
|
ASTM A36/Q235
|
|---|---|
|
Standard
|
|
|
Production specifications
|
Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings.
|
|
Mchining
|
Turning
Milling Grinding Deep hole drilling: length max 9.8 meters. |
|
Range of work
|
Round bar steel: 1mm to 2000mm
Square-shape steel: 10mm to 1000mm
steel Plate/sheet:0.08mm to 800mm
Width: 10mm to 1500mm
Lenth: We can supply any lenth based on the customer's requirement.
Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm.
|
|
Heat treatment
|
Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing
|
ASTM A36 Chemical composition and Mechanical properties
|
Physical Properties
|
Metric
|
English
|
Comments
|
|---|---|---|---|
|
Density
|
7.85 g/cc
|
0.284 lb/in³
|
Typical of ASTM steel
|
|
|
|||
|
Mechanical Properties
|
Metric
|
English
|
Comments
|
|
Hardness, Brinell
|
119 - 159
|
119 - 159
|
based on conversion from tensile strength
|
|
Hardness, Rockwell B
|
67.0 - 83.0
|
67.0 - 83.0
|
based on conversion from tensile strength
|
|
Tensile Strength at Break
|
400 - 552 MPa
|
58000 - 80000 psi
|
|
|
Tensile Strength, Yield
|
>= 221 MPa
|
>= 32000 psi
|
|
|
Elongation at Break
|
>= 18.0 %
|
>= 18.0 %
|
in 8"
|
|
|
>= 21.0 %
|
>= 21.0 %
|
in 2", > 24" W
|
|
Bend Radius, Minimum
|
0.500 t
|
0.500 t
|
≤3/4" W; ASTM A6 PARA. S14
|
|
|
1.00 t
|
1.00 t
|
>3/4 to 1" W; ASTM A6 PARA. S14
|
|
|
1.50 t
|
1.50 t
|
>1 to 1-1/2" W; ASTM A6 PARA. S14
|
|
|
2.50 t
|
2.50 t
|
>1-1/2 to 2" W; ASTM A6 PARA. S14
|
|
|
3.00 t
|
3.00 t
|
>2" W; ASTM A6 PARA. S14
|
Mechanical Properties
|
Properties
|
Conditions
|
||
|---|---|---|---|
|
T (°C)
|
Treatment
|
||
|
Density (×1000 kg/m3)
|
7.7-8.03
|
25
|
|
|
Poisson's Ratio
|
0.27-0.30
|
25
|
|
|
Elastic Modulus (GPa)
|
190-210
|
25
|
|
|
Tensile Strength (Mpa)
|
1158
|
25
|
oil quenched, fine grained, tempered at 425°C
|
|
Yield Strength (Mpa)
|
1034
|
||
|
Elongation (%)
|
15
|
||
|
Reduction in Area (%)
|
53
|
||
|
Hardness (HB)
|
335
|
25
|
oil quenched, fine grained, tempered at 425°C
|
Physical Properties
|
Quantity
|
Value
|
Unit
|
|---|---|---|
|
Thermal expansion
|
16 - 17
|
e-6/K
|
|
Thermal conductivity
|
16 - 16
|
W/m.K
|
|
Specific heat
|
500 - 500
|
J/kg.K
|
|
Melting temperature
|
1370 - 1400
|
°C
|
|
Service temperature
|
0 - 500
|
°C
|
|
Density
|
8000 - 8000
|
kg/m3
|
|
Resistivity
|
0.7 - 0.7
|
Ohm.mm2/m
|
Steel Category:Carbon and low alloy steel
Steel grade:ASTMA36
A36steelDimension:
Thickness: 5-300mm
Width: 1500-3500mm
Length: 3000-12000mm
A36steel plateApplication:
A36steel has the proper tensile strength, good toughness, plasticity, processing property, be rolled into steel plates, shaped steel and profile steel, which usually used to build workshop, bridge, vessels and so on .The delivery station usually are hot rolled, control rolled, or Normalized.
ASTMA36 Steel chemical composition -% by mass:
C:0.25—0.29 Mn:0.80—1.20 P: 0.04 S: 0.05 Si:0.15—0.40 Cr :0.20
A36steel plate Mechanical properties:
Yield Strength ReH:36—32 Tensile Strength Rm:58—80
Fracture Elongation[%]:20
If you have any question, please feel free to contact us any time.
